Simplify your CAD workflow.

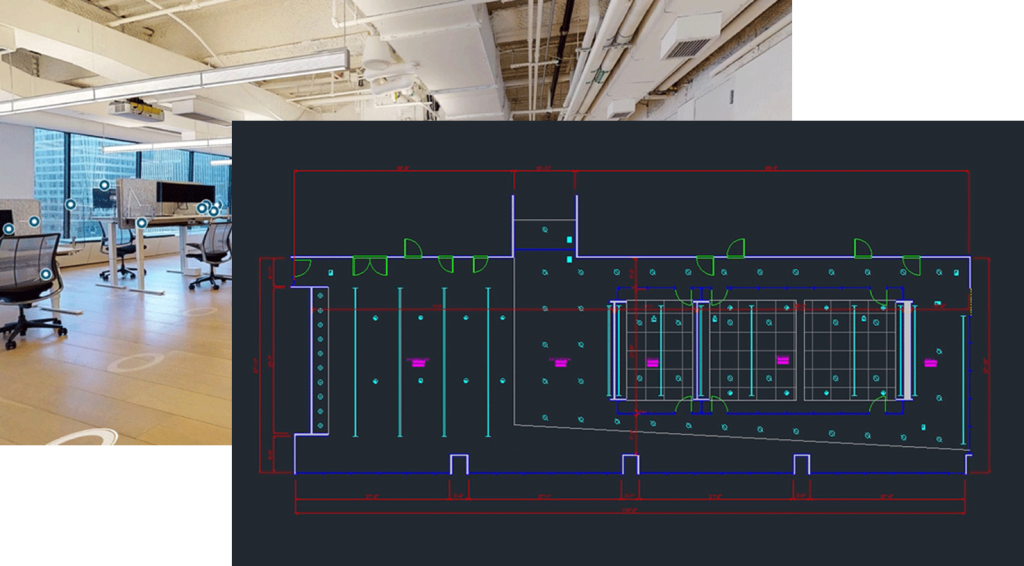

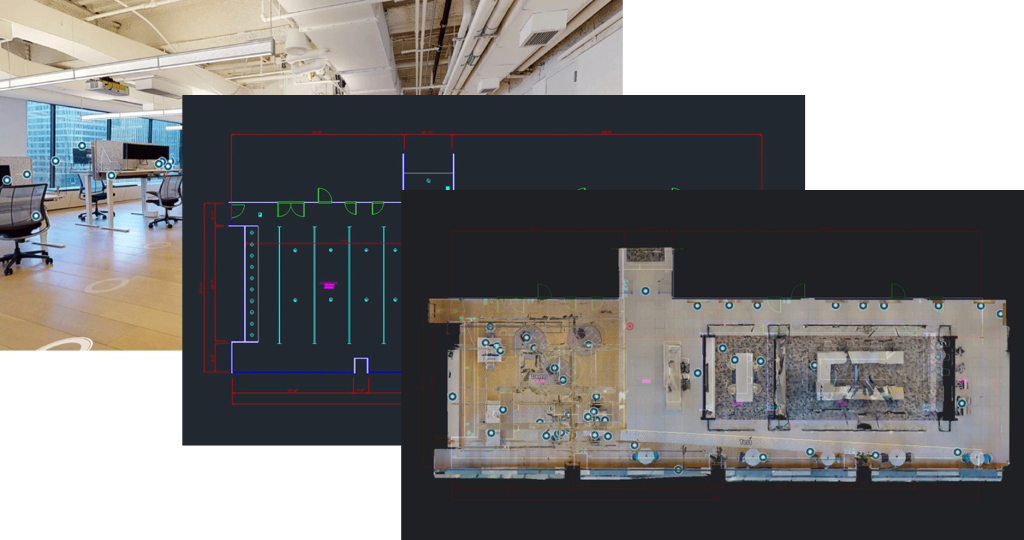

With this service, teams are free from tedious manual work and can instead focus on achieving powerful business results. High-quality Matterport CAD files are generated hassle-free and affordably from the accurate point cloud in your digital twin. Download sample CAD files created for this space.

Design files delivered faster than ever.

With a Professional subscription plan or higher, you can get your CAD files in as fast as 3 business days. Our versatile offering includes four different building element output options, ensuring flexibility and customization.

Architecture

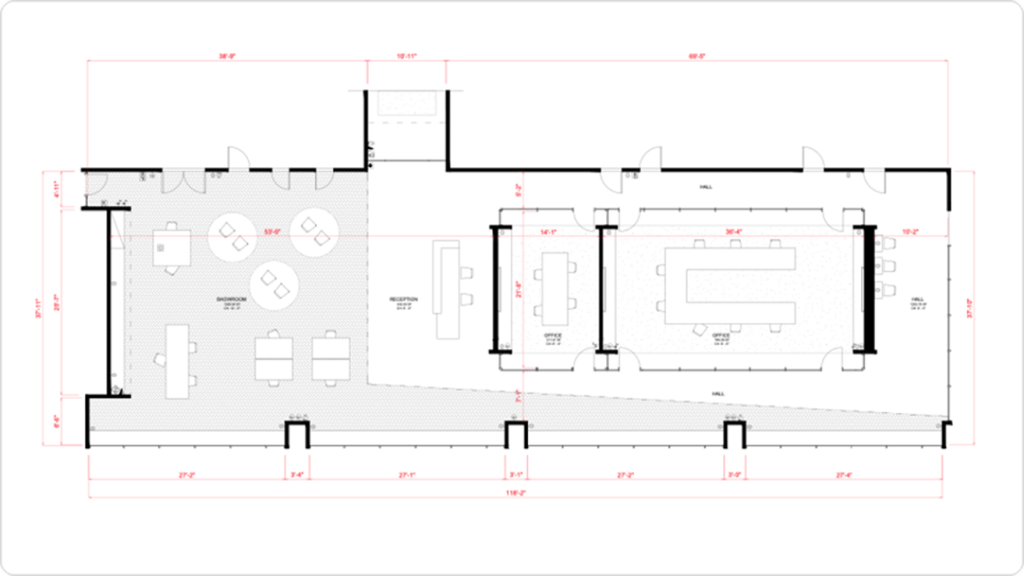

This standard CAD file captures the fundamental components of the building’s internal structure, including visible walls, floors, doors, columns, ceilings, windows, bathroom fixtures, stairs, roofs.

Architecture & Electrical

Capture architecture and generic models of existing conditions, modeled to size, of interior architecture and electrical elements, including; power/data outlets, lighting fixtures/switches, alarms, etc., based on the scan point cloud.

The file formats cater to industry standards, ensuring seamless integration into your existing workflows.

Architecture, Electrical & Interior Furniture

Get a comprehensive representation of all the elements of architecture, interior furniture, and electrical mentioned above.

Deliverable file formats include:

•.DWG CAD format of floor plans and reflected ceiling plans (only for orders with Electrical option selected.)

•.DXF Exported from CAD

•PDF set of images for all floor plans and reflected ceiling plans (only for orders with Electrical option selected.)

•.CTB file (plot styles for CAD, aka printing standards)

Deliverable file formats include:

.DWG CAD format of floor plans and reflected ceiling plans (only for orders with Electrical option selected.)

.DXF Exported from CAD

PDF set of images for all floor plans and reflected ceiling plans (only for orders with Electrical option selected.)

.CTB file (plot styles for CAD, aka printing standards)
